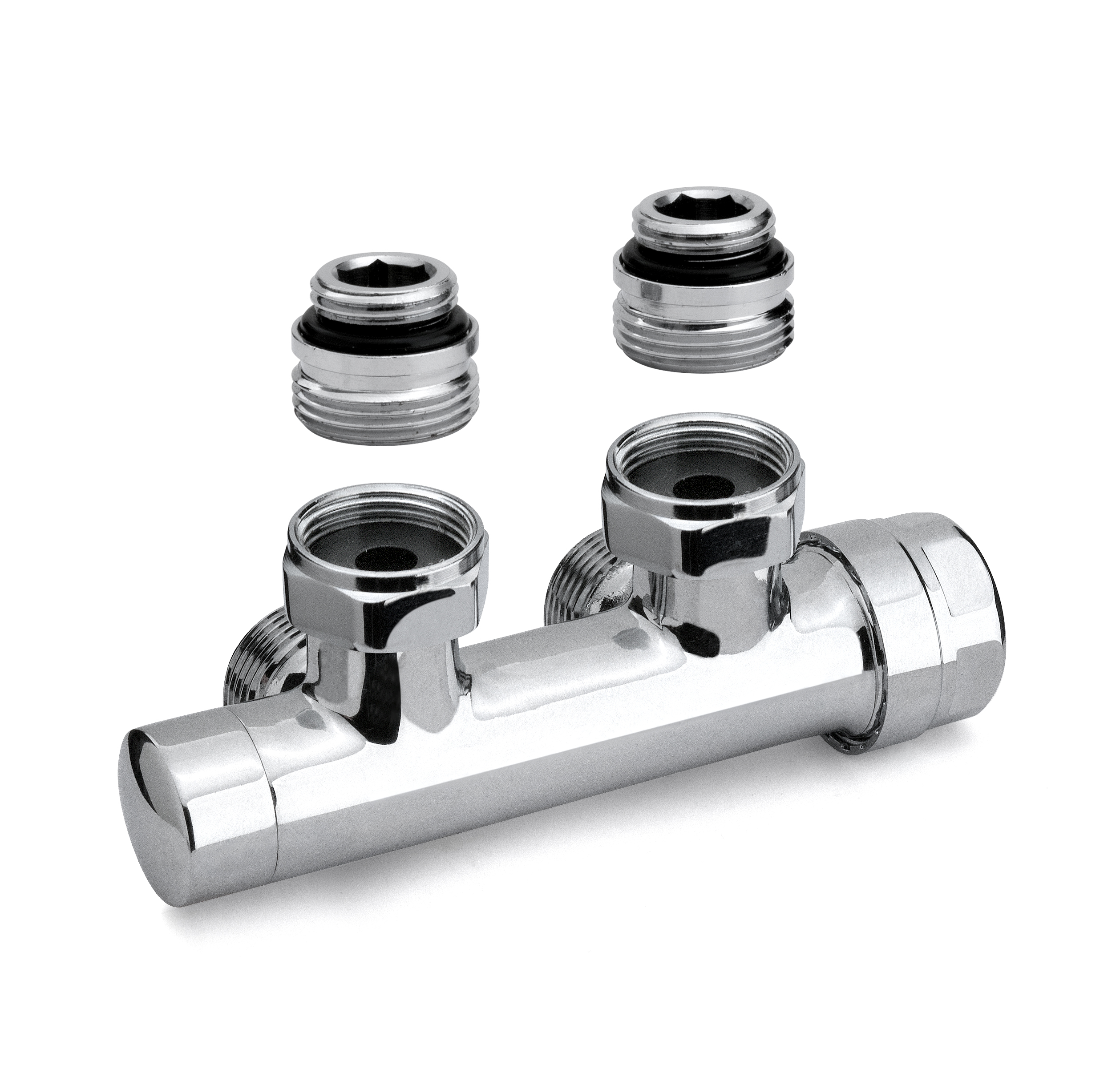

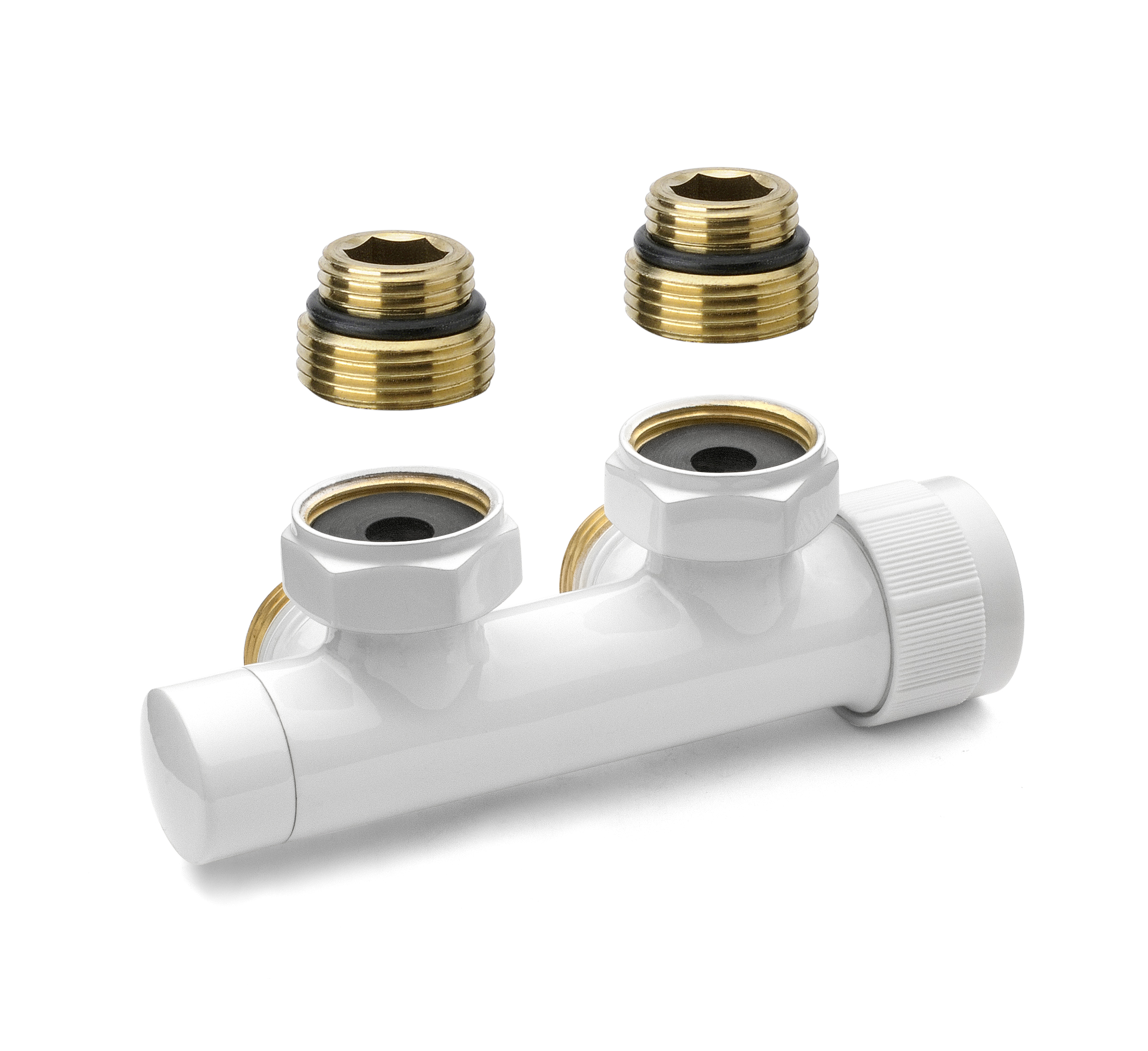

Thermostatic valve
We offer two types of thermostatic copper angle H valve – white and chrome finishing.
Thermostatic valve is whole made from copper, thread complies to standard ISO 228/1. PN 10, Temperature: -20°C – +100°C
![](http://thermal-trend.cz/wp-content/uploads/2019/07/343TB015-300x275.jpg)

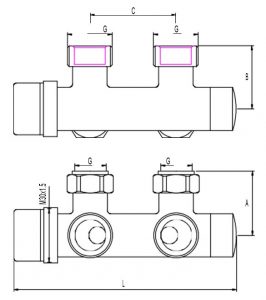

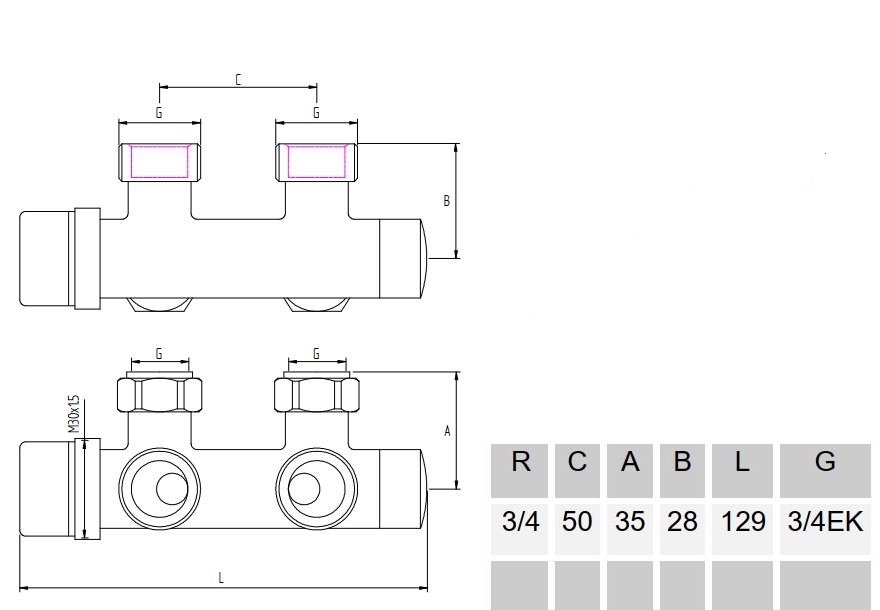

Drawings:
![](http://thermal-trend.cz/wp-content/uploads/2020/06/nakres_SP_rozmery-300x208.jpg)

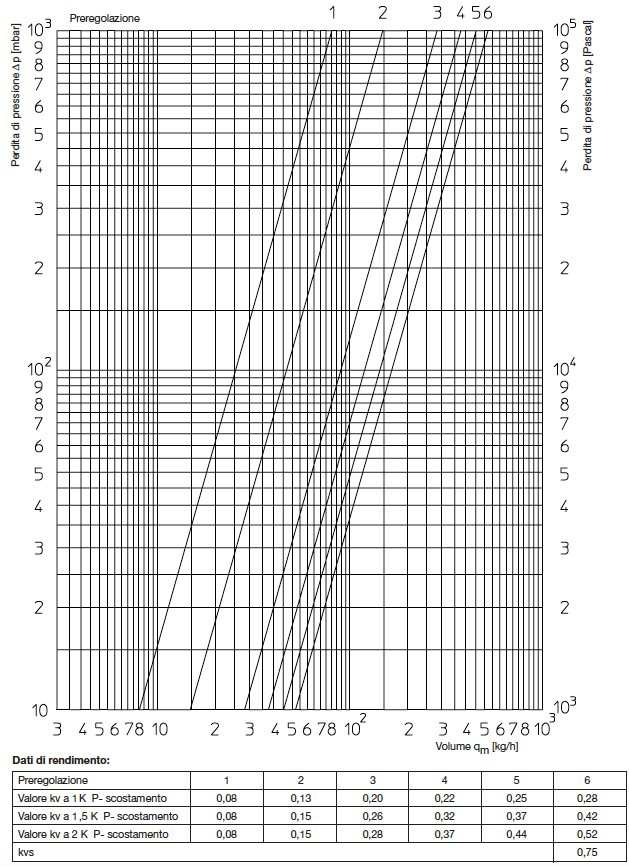

Balancing diagram:
![](http://thermal-trend.cz/wp-content/uploads/2019/07/Stredovy_ventil-218x300.png)
