Radiator Type R

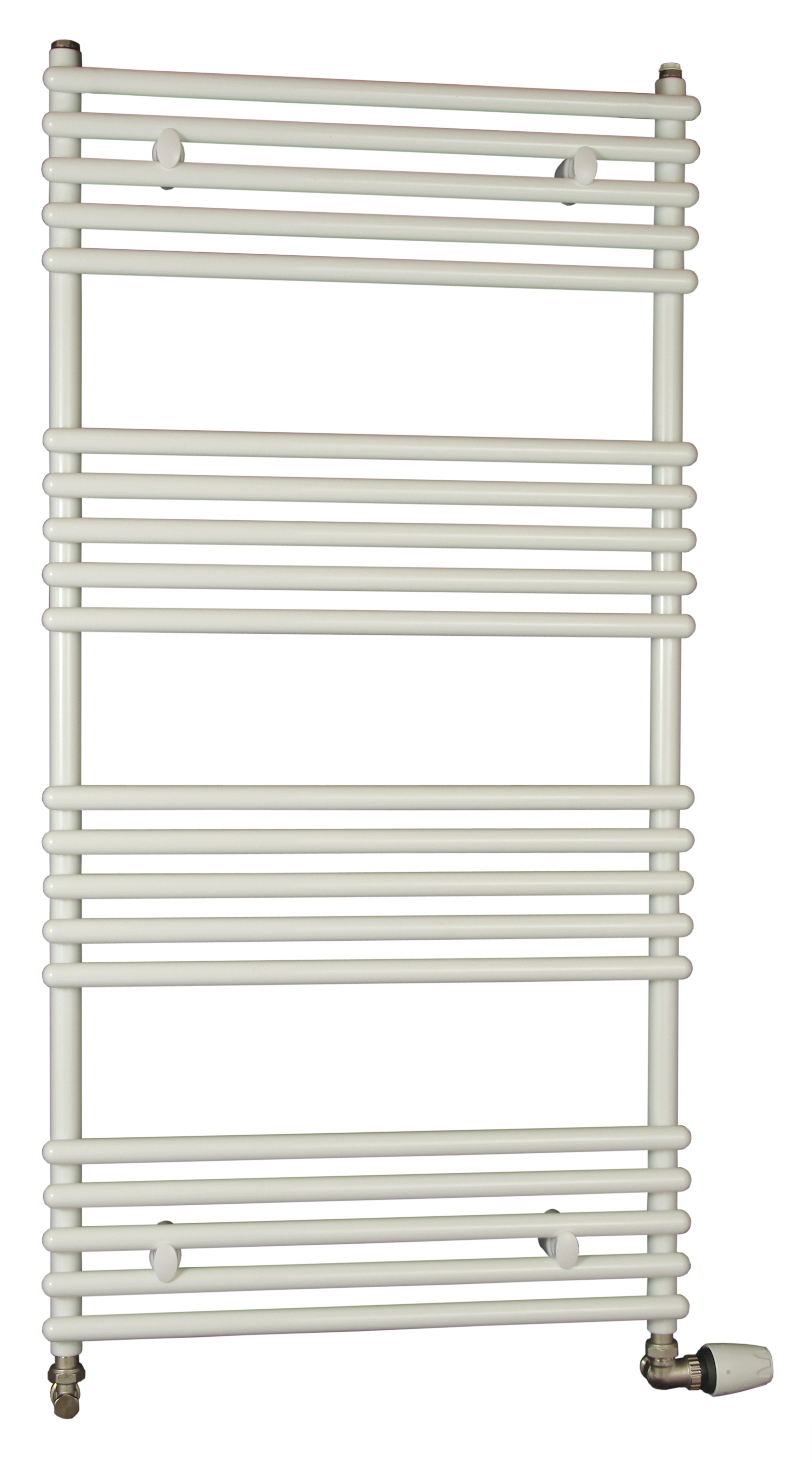

The steel ladder radiator Thermal Trend type R is a proven and highly successful traditional radiator that we offer in many variants. The popular model in the classic design offers excellent heat output at a favorable price. Choose from a number of different sizes, including atypical dimensions and bring conformable warmth to your household.





Heat output Q [W] for the water heat carrier according to DIN EN 442
Type Height H [mm] Width W [mm] Connecting pitch [mm] t1/t2[°C] Q[W] tj  [20 °C] Temperature exponent n Water capacity [l] Recommended input for combined heating [W]

R 450/780 780 450 410 75/65 266 1,2311 2,4 300
R 600/780 780 600 560 75/65 341 1,2152 2,9 300
R 750/780 780 750 710 75/65 412 1,1992 3,4 400
R 450/1180 1180 450 410 75/65 400 1,2089 3,6 400
R 600/1180 1180 600 560 75/65 511 1,1933 4,4 500
R 750/1180 1180 750 710 75/65 618 1,1776 5,1 600
R 450/1500 1500 450 410 75/65 568 1,238 4,5 500
R 600/1500 1500 600 560 75/65 727 1,2219 5,5 600
R 750/1500 1500 750 710 75/65 879 1,2059 6,4 800
R 450/1820 1820 450 410 75/65 690 1,238 5,1 600
R 600/1820 1820 600 560 75/65 882 1,2219 6,2 800
R 750/1820 1820 750 710 75/65 1068 1,2059 7,4 900

Power output conversion coefficients for different types of connections:

  • One side connection – see the tab for fx = 1
  • Diagonal connection – see the tab for fx = 1,011
  • Down to up connection – see the tab for fx = 0,959
  • Central connection from the bottom (50 mm) fx = 0,89













Types of connection

More in INSTALLATION here













Electric connection

This steel ladder radiator is electric compatible and can be equipped with an electric rod with a temperature limiter set to 85°C, which protects the device against overheating. Radiators are factory pre-filled with an antifreeze mixture with a freezing point of -5 ° C.

You can choose from more types of thermostats to further set up the heating temperature, more about

ELECTRIC DEVICE here
