Radiator Type DHR - ThermalTrend

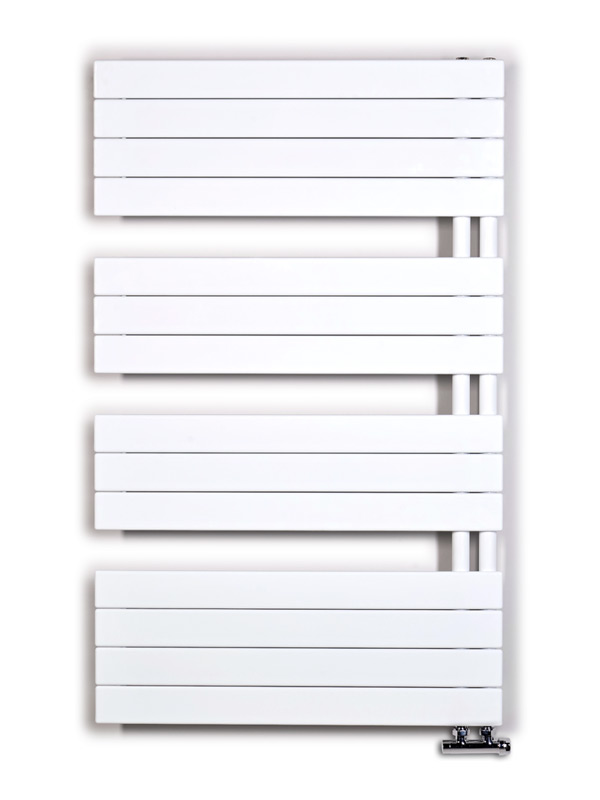

The modern type of radiator DHR is carefully developed with respect to current design needs of our customers. You can easily hang towels and other fabrics on its parts. DHR is offered in the classic left and right versions in sizes shown below. Choose your desired model and get inspired by its cool look and warm comfortable heat.

Open Leaflet

Heat output Q [W] for the water heat carrier according to DIN EN 442

Type	Height H[mm]	Width W[mm]	Connecting pitch [mm]	t₁/t₂[°C]	Q[W] t_j [20 °C]	Water capacity / [l]	Recommended input for combined heating [W]
Type	Height H[mm]	Width W[mm]	Connecting pitch [mm]	t₁/t₂[°C]		Water capacity / [l]	Recommended input for combined heating [W]
DHR 450/934	934	450	50	90/70	479	3,9	300
DHR 600/934	934	600	50	90/70	623	4,8	300
DHR 750/934	934	750	50	90/70	764	5,7	400
DHR 450/1222	1222	450	50	90/70	612	5	300
DHR 600/1222	1222	600	50	90/70	796	6,1	400
DHR 750/1222	1222	750	50	90/70	977	7,2	500
DHR 450/1510	1510	450	50	90/70	753	6,1	400
DHR 600/1510	1510	600	50	90/70	980	7,5	500
DHR 750/1510	1510	750	50	90/70	1201	8,8	600
DHR 450/1798	1798	450	50	90/70	903	7,2	500
DHR 600/1798	1798	600	50	90/70	1175	8,8	600
DHR 750/1798	1798	750	50	90/70	1442	10,4	700

Power output conversion coefficients for different types of connections:

One side connection – see the tab for fx = 1
Diagonal connection – see the tab for fx = 1,011
Down to up connection – see the tab for fx = 0,959
Central connection from the bottom (50 mm) fx = 0,89

Types of connection

Electric connection

This steel ladder radiator is electric compatible and can be equipped with an electric rod with a temperature limiter set to 85°C, which protects the device against overheating. Radiators are factory pre-filled with an antifreeze mixture with a freezing point of -5 ° C.

You can choose from more types of thermostats to further set up the heating temperature, more about

ELECTRIC DEVICE here
