Radiator Type HTO - ThermalTrend

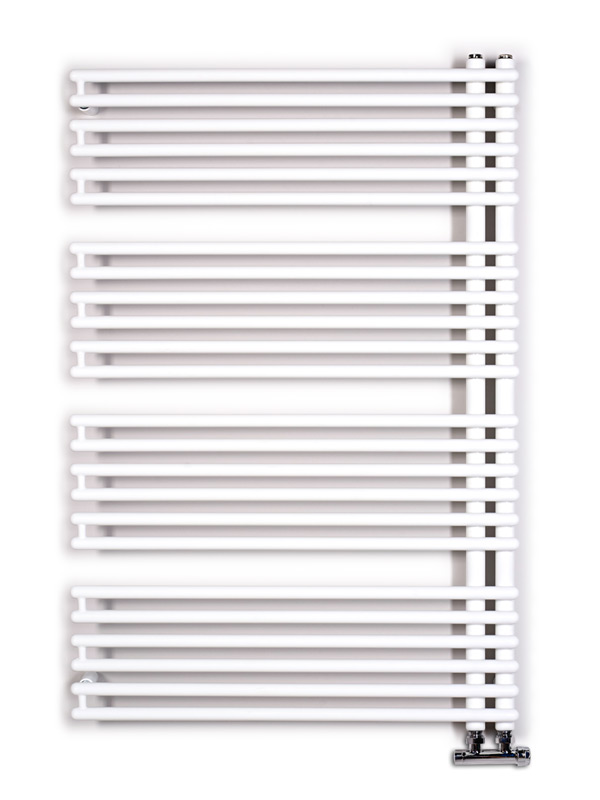

The Thermal Trend steel ladder radiator type HTO is a specially developed product for hanging towels and other textiles. Advanced production allows users to use over-pressure of 1 MPa in a common daily use. Be inspired with a stylish HTO design made by the cataphoretic technology, that allows perfect color coverage and adhesion all over the surface during production process.

Open Leaflet

Heat output Q [W] for the water heat carrier according to DIN EN 442

Type	Height H[mm]	Width W[mm]	Connecting pitch [mm]	t₁/t₂[°C]	Q[W] t_j [20 °C]	Water capacity [l]	Recommended input for combined heating [W]
Type	Height H[mm]	Width W[mm]	Connecting pitch [mm]	t₁/t₂[°C]		Water capacity [l]	Recommended input for combined heating [W]
HTO 496/1126	1126	496	50	90/70	660	4,85	300
HTO 596/1126	1126	596	50	90/70	783	5,5	300
HTO 746/1126	1126	746	50	90/70	965	6,5	400
HTO 496/1454	1454	496	50	90/70	855	5,8	400
HTO 596/1454	1454	596	50	90/70	1015	6,65	500
HTO 746/1454	1454	746	50	90/70	1251	7,8	600
HTO 496/1782	1782	496	50	90/70	1054	8	600
HTO 596/1782	1782	596	50	90/70	1250	9,1	700
HTO 746/1782	1782	746	50	90/70	1541	10,7	800

Power output conversion coefficients for different types of connections:

One side connection – see the tab for fx = 1
Diagonal connection – see the tab for fx = 1,011
Down to up connection – see the tab for fx = 0,959
Central connection from the bottom (50 mm) fx = 0,89

Types of connection

Electric connection

This steel ladder radiator is electric compatible and can be equipped with an electric rod with a temperature limiter set to 85°C, which protects the device against overheating. Radiators are factory pre-filled with an antifreeze mixture with a freezing point of -5 ° C.

You can choose from more types of thermostats to further set up the heating temperature, more about

ELECTRIC DEVICE here
