Radiator Type KD













Type KD is currently on most of our resellers stock.

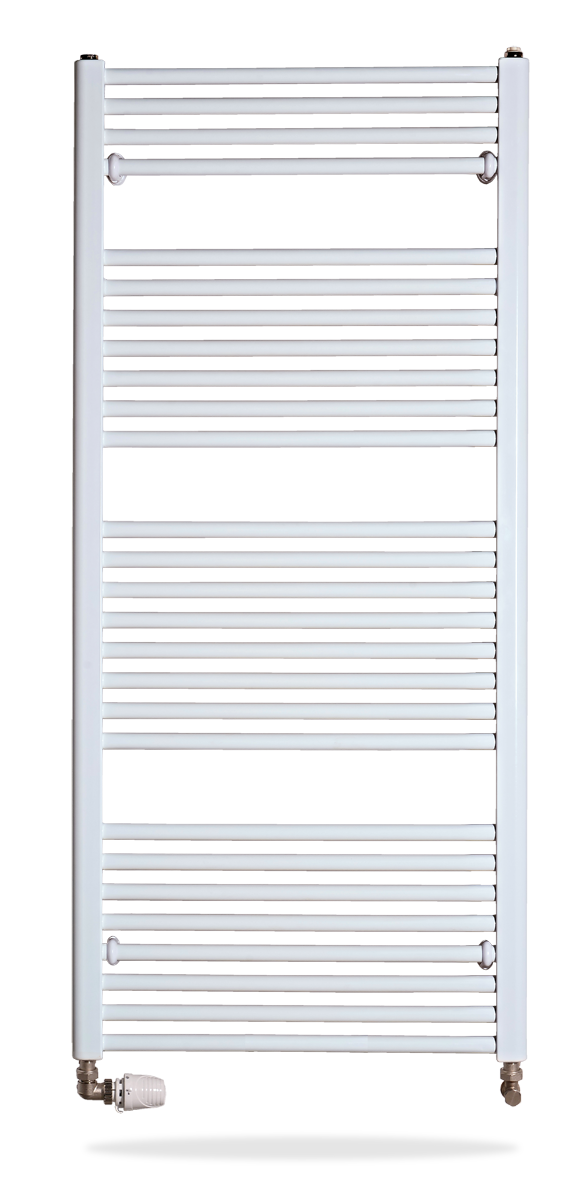

The steel ladder radiator type KD is made from careful selection of the best quality materials. Tubes in profile D are embedded in 20 or 22 mm horizontal bars. There is also an ECO variant with a smaller number of bars. Radiator KD has been strongly recommended by our leading customers in all markets for more than 20 years.
















Open leaflet
Heat output Q [W] for the water heat carrier according to DIN EN 442

                 Material: Steel vertical pipes in D profile 30×40 mm with horizontal tubes 20 mm

Type Height H Width W Connecting pitch t1/t2[°C] Q[W] tj  [20 °C] Temperature exponent n Water capacity Recommended input for combined heating[W]

KD 450 / 720 720 450 408 90/70 450 12 347 3,6 200
KD 600 / 720 720 600 558 90/70 604 12 507 4,35 300
KD 750 / 720 720 750 708 90/70 759 12 666 5,1 300
KD 450 / 960 960 450 408 90/70 562 12 564 4,53 300
KD 600 / 960 960 600 558 90/70 752 12 607 5,51 300
KD 750 / 960 960 750 708 90/70 943 12 651 6,49 400
KD 450 / 1320 1320 450 408 90/70 752 12 908 6 400
KD 600 / 1320 1320 600 558 90/70 1003 12 767 7,35 500
KD 750 / 1320 1320 750 708 90/70 1253 12 626 8,7 600
KD 450 / 1680 1680 450 408 90/70 956 12 781 7,6 500
KD 600 / 1680 1680 600 558 90/70 1277 1 273 9,3 600
KD 750 / 1680 1680 750 708 90/70 1599 12 678 11 700
KD 450 / 1840 1840 450 408 90/70 1090 13 063 8,7 500
KD 600 / 1840 1840 600 558 90/70 1452 12 853 10,7 700
KD 750 / 1840 1840 750 708 90/70 1812 12 643 12,7 900

Power output conversion coefficients for different types of connections:

  • One side connection – see the tab for fx = 1
  • Diagonal connection – see the tab for fx = 1,011
  • Down to up connection – see the tab for fx = 0,959
  • Central connection from the bottom (50 mm) fx = 0,89













Types of connection

More in INSTALLATION here













Electric connection

This steel ladder radiator is electric compatible and can be equipped with an electric rod with a temperature limiter set to 85°C, which protects the device against overheating. Radiators are factory pre-filled with an antifreeze mixture with a freezing point of -5 ° C.

You can choose from more types of thermostats to further set up the heating temperature, more about

ELECTRIC DEVICE here
