Radiator Type RO - ThermalTrend

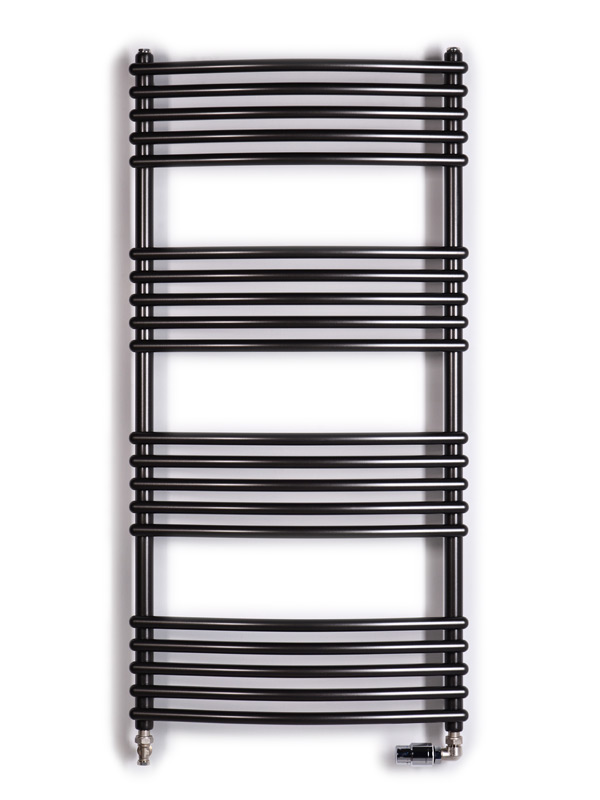

The steel ladder radiator RO from Thermal Trend is the classic type of radiator that wins on the market with a great price and performance ratio. The best quality steel tubes the radiator is made from and the advanced production method of cataphoresis grants perfect color coverage throughout the surface.

Open Leaflet

Heat output Q [W] for the water heat carrier according to DIN EN 442

Type	Height H [mm]	Width W [mm]	Connecting pitch [mm]	t₁/t₂[°C]	Q[W] t_j [20 °C]	Temperature exponent n	Water capacity [l]	Recommended input for combined heating[W]
Type	Height H [mm]	Width W [mm]	Connecting pitch [mm]	t₁/t₂[°C]		Temperature exponent n	Water capacity [l]	Recommended input for combined heating[W]
RO 450/780	780	450	410	75/65	266	1,2311	2,4	300
RO 600/780	780	600	560	75/65	341	1,2152	2,9	300
RO 750/780	780	750	710	75/65	412	1,1992	3,4	400
RO 450/1180	1180	450	410	75/65	400	1,2089	3,6	400
RO 600/1180	1180	600	560	75/65	511	1,1933	4,4	500
RO 750/1180	1180	750	710	75/65	618	1,1776	5,1	600
RO 450/1500	1500	450	410	75/65	568	1,238	4,5	500
RO 600/1500	1500	600	560	75/65	727	1,2219	5,5	600
RO 750/1500	1500	750	710	75/65	879	1,2059	6,4	800
RO 450/1820	1820	450	410	75/65	690	1,238	5,1	600
RO 600/1820	1820	600	560	75/65	882	1,2219	6,2	800
RO 750/1820	1820	750	710	75/65	1068	1,2059	7,4	900

Power output conversion coefficients for different types of connections:

One side connection – see the tab for fx = 1
Diagonal connection – see the tab for fx = 1,011
Down to up connection – see the tab for fx = 0,959
Central connection from the bottom (50 mm) fx = 0,89

Types of connection

Electric connection

This steel ladder radiator is electric compatible and can be equipped with an electric rod with a temperature limiter set to 85°C, which protects the device against overheating. Radiators are factory pre-filled with an antifreeze mixture with a freezing point of -5 ° C.

You can choose from more types of thermostats to further set up the heating temperature, more about

ELECTRIC DEVICE here
