Installation

• Radiators are installed depending on the type of connection either from bottom to bottom, bottom center or double-sided from top to bottom
• They are fixed at 3 or 4 points depending on the size and design of the radiator.

1. Drill holes in the wall for dowels (drill ø 10 mm).

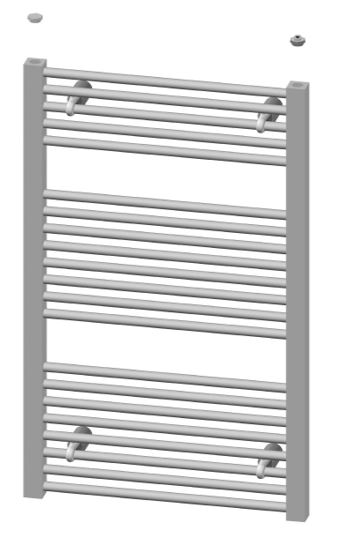

2. Place the console either between or on second and third tube (depending on the type of console) from the up and from the bottom.
3. Attach the consoles using screws and washers, level with a spirit-level and tighten the screws.

All radiators include complete assembly kit with:

• 4 pcs consoles
• Dowels, washers and screws
• Ventiles and metal plugs

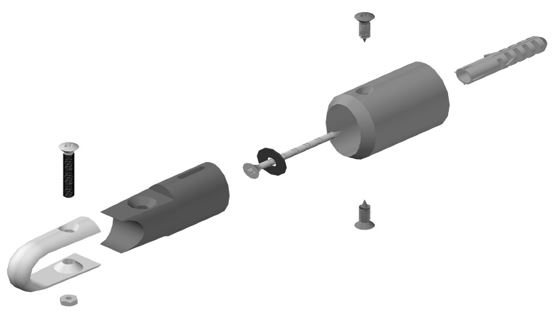

• Console with gripping on the tube

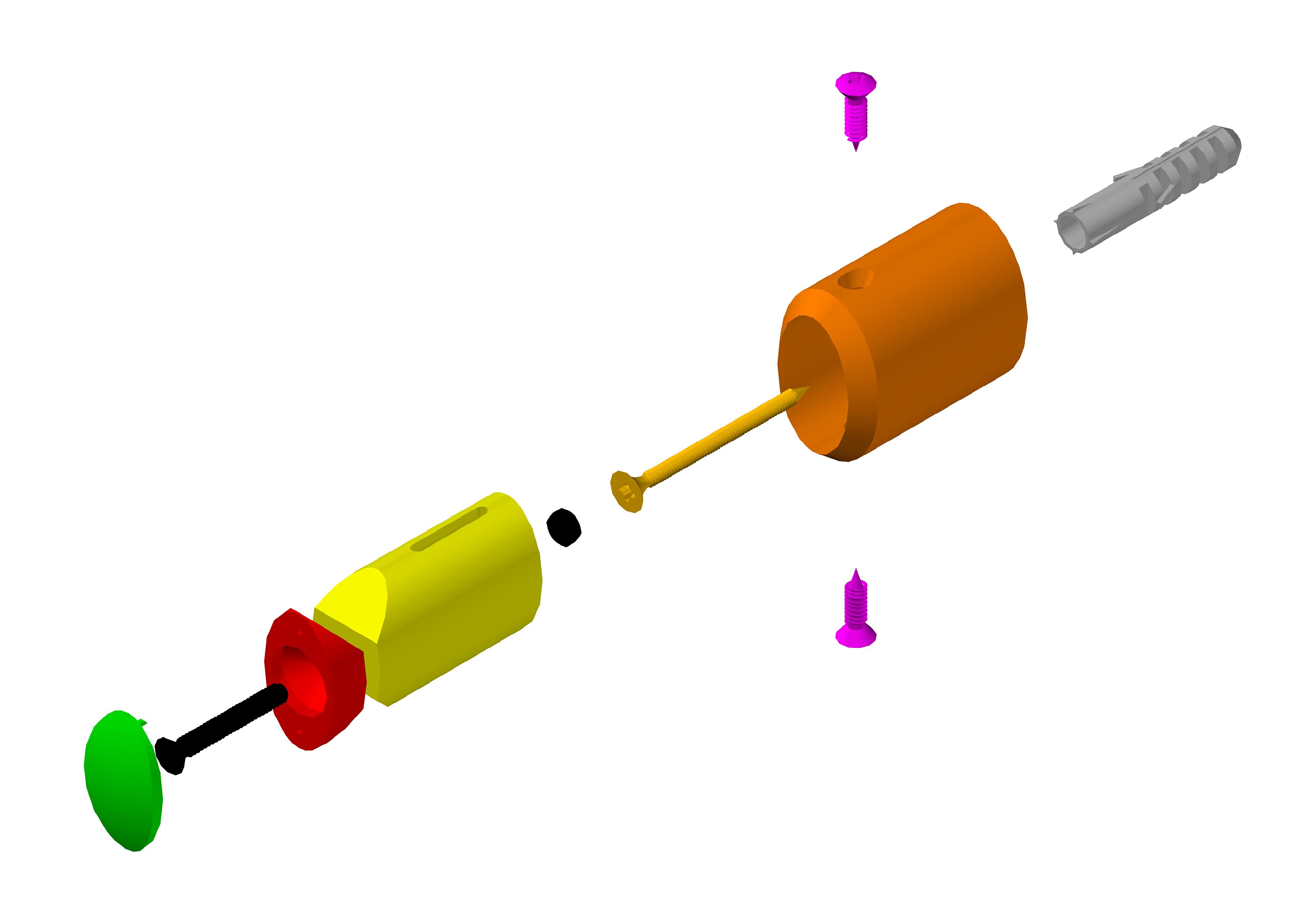

• Console with gripping between tubes

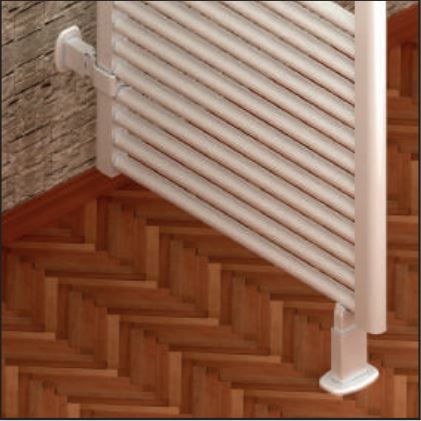

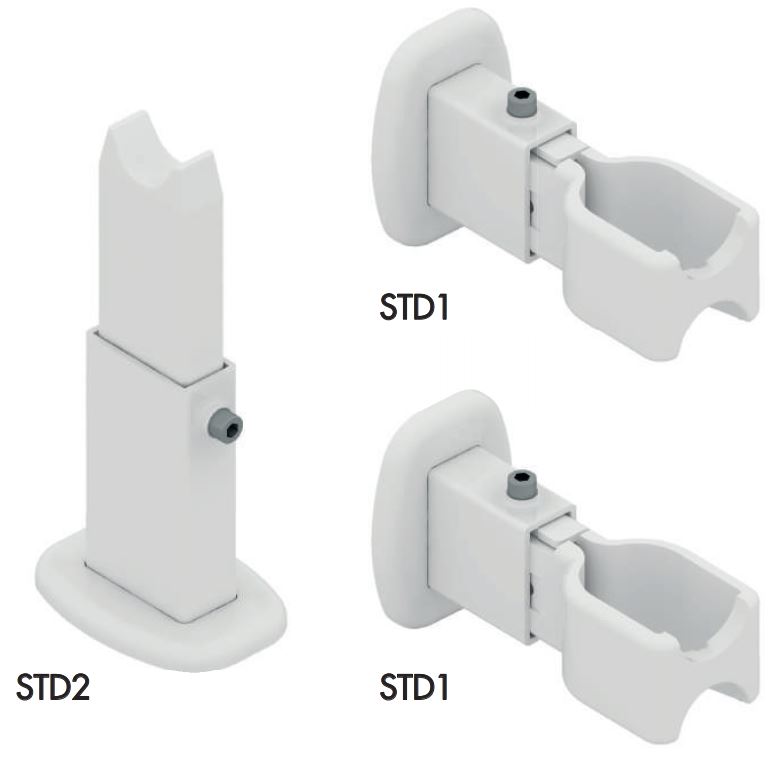

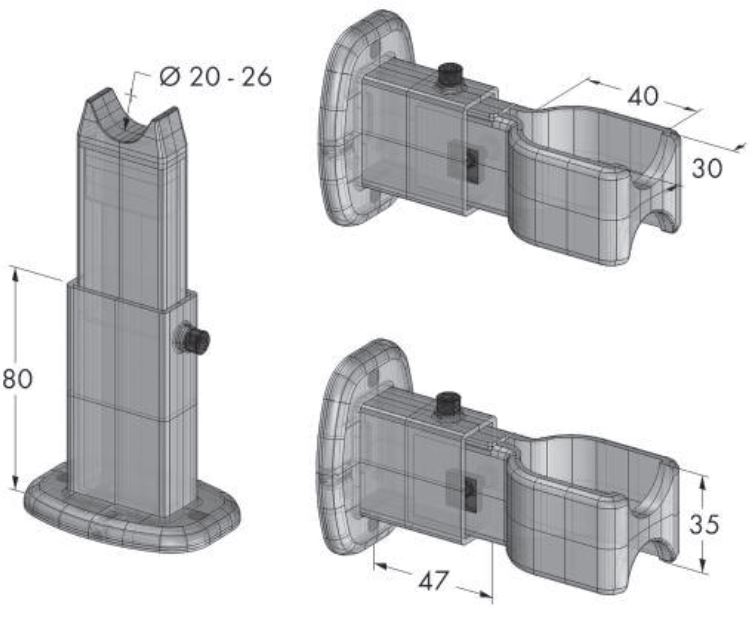

• Floor standing bracket for installation as a room divider
